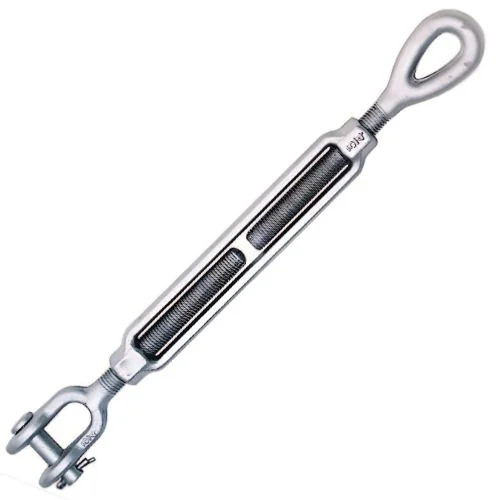

HG-227 Drop Forged Turnbuckles
- Material: Forged Carbon Steel, Hot-Dip Galvanized
- Security: Jaw end with security pin for permanent mounting
- Process: Controlled heat treatment for high Working Load Limits (WLL)
- Applications: Structural guy wires, stadium rigging, ship building, and heavy factory installations
Precision-engineered for reliability, the HG-227 Drop Forged Turnbuckles ensures tight operational tolerances. Its unique profile makes it preferred for repeat maintenance and heavy-duty machinery service. Our quality control processes ensure that every batch meets the high technical standards required by modern engineering. Supporting the growth of regional infrastructure from the Jebel Ali corridors to the Middle East. Ensuring 100% compliance with international safety and durability standards for all hardware. Trusted by regional experts for consistent mechanical reliability and performance excellence. We prioritize prompt delivery across the GCC to ensure your projects remain on schedule.
Technical Data (Inches)
| Thread Dia (inch) | Take-Up (inch) | WLL (Tons) - Axial | Jaw Opening (mm) |
|---|---|---|---|
| 1/4" | 4" | 0.23 | 11.0mm |
| 3/8" | 6" | 0.54 | 13.5mm |
| 1/2" | 9" | 1.00 | 16.0mm |
| 5/8" | 12" | 1.59 | 19.0mm |
| 3/4" | 12" | 2.36 | 24.0mm |
| 7/8" | 12" | 3.27 | 28.5mm |
| 1" | 12" | 4.54 | 30.0mm |
*Working Load Limit based on a safety factor of 5:1. Always ensure consistent inspection for wear and corrosion.
