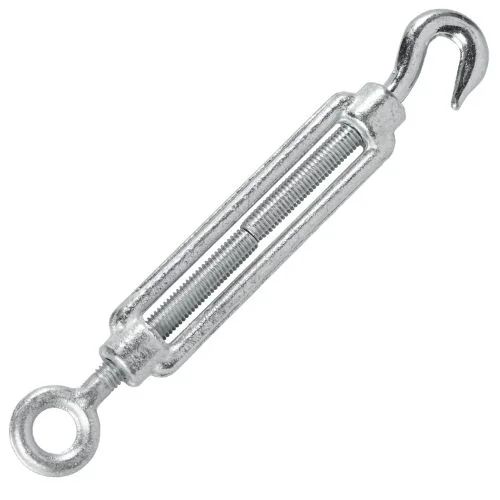

Galvanized Hook & Eye Turnbuckle

Commercial Hook & Eye Turnbuckles

Versatile Tensioning for Light & Medium Loads

Our Commercial Galvanized Turnbuckles with Hook & Eye ends are designed for rapid installation and easy adjustment of cable and wire rope tension. The hook end allows for quick attachment to permanent eyes or chain loops, while the eye end provides a secure, permanent anchor point for shackle pins or bolts.

Manufactured from zinc-plated carbon steel, these turnbuckles (also known as bottle screws or stretching screws) offer reliable performance in the humid environments of Dubai. They are widely used in fencing, architectural rigging, and general utility tasks where certified heavy lifting is not required.

  • Material: Carbon Steel, Zinc-Plated for rust protection
  • Configuration: Hook on one end, Eye on the other
  • Body Type: Open frame body for easy thread inspection
  • Applications: Fencing, guy wires, sunshade sails, and light-duty rigging

Technical Specifications

Thread Size (M) Thread Size (inch) Approx Length (Closed) Approx Length (Open)
M5 3/16" 120mm 180mm
M6 1/4" 145mm 220mm
M8 5/16" 185mm 285mm
M10 3/8" 235mm 360mm
M12 1/2" 300mm 460mm
M16 5/8" 390mm 595mm
M20 3/4" 440mm 670mm
<
