Tool Holders & Adapters

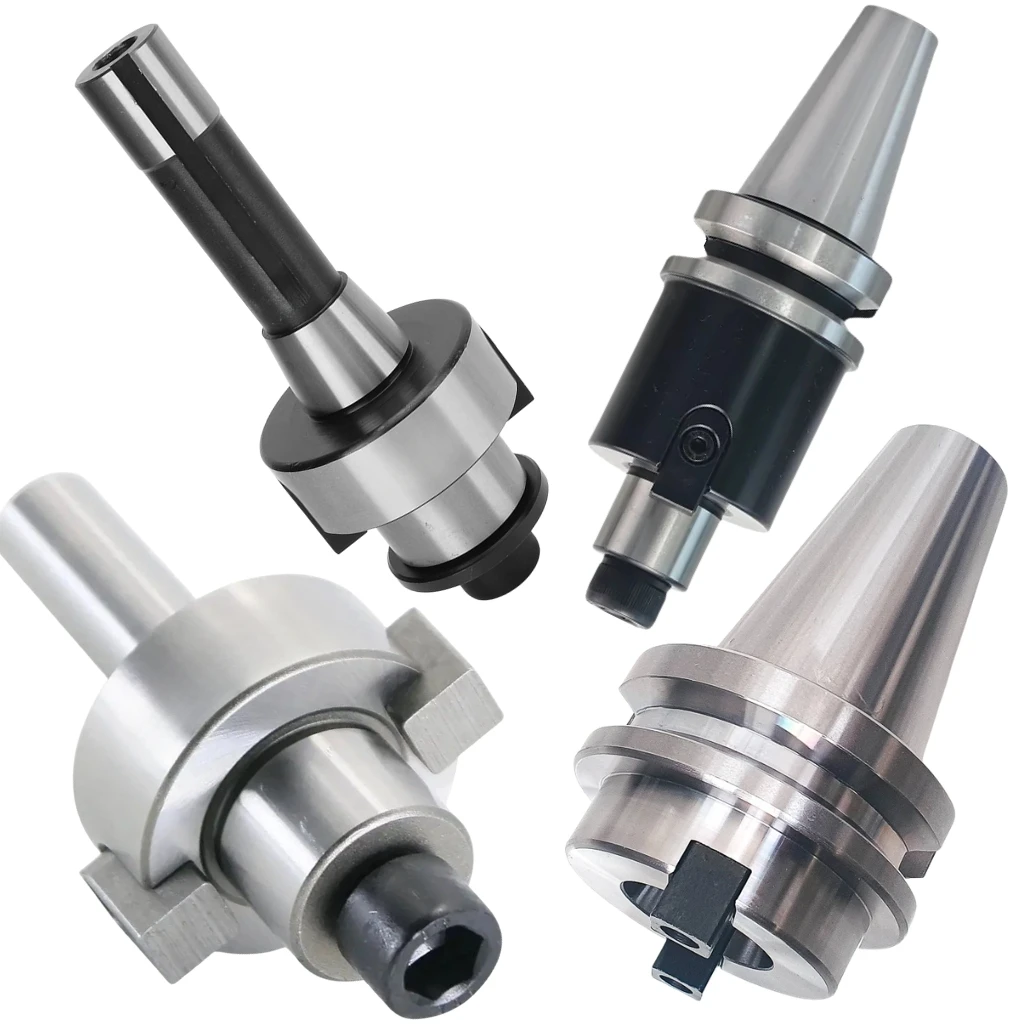

Cylindrical shank holders for BAP 300R and 400R face mills, and arbor mount adapters for ASX400 shell-type shoulder mills. C-shank sizes from C16 to C32 for face mills, and bore diameters from 22mm to 38.1mm for shoulder mill arbor mounting.
Cylindrical Shank Holders (BAP Face Mills)
Steel cylindrical shank holders for BAP 300R and 400R face mills. For use with collet chucks or hydraulic chucks. Through-coolant capable.
| Shank Size | Shank Diameter (mm) | Compatible Face Mills |
|---|---|---|
| C16 | 16 | BAP300R-40 |
| C22 | 22 | BAP300R-50, BAP300R-63, BAP400R-50, BAP400R-63 |
| C27 | 27 | BAP400R-80 |
| C32 | 32 | BAP400R-100 |
Arbor Mount Adapters (ASX400 Shoulder Mills)
Arbor mount adapters for ASX400 shell-type shoulder milling cutters. Bore sizes match standard arbor diameters for mounting on production machining centres.
| Bore Diameter (mm) | Compatible Shoulder Mills |
|---|---|
| 22.0 | ASX400R-05004, ASX400R-06305, ASX400R-06306 |
| 25.4 | ASX400R-06305-25.4, ASX400R-08006-25.4 |
| 27.0 | ASX400R-08006, ASX400R-08008 |
| 31.75 | ASX400R-10007 |
| 38.1 | ASX400R-12508 |
SK Taper Adapters (DIN 69871)
SK40 and SK50 taper adapters for mounting screw-on shank milling tools on machining centres with SK spindle interfaces.
| Taper | Thread | Projection Lengths (mm) |
|---|---|---|
| SK40 | M8 | 50, 75, 100 |
| SK40 | M10 | 50, 75, 100 |
| SK40 | M12 | 50, 75, 100, 125 |
| SK40 | M16 | 50, 75, 100, 125, 150 |
| SK50 | M12 | 50, 100, 150 |
| SK50 | M16 | 50, 100, 150 |
BT Taper Adapters (MAS 403)
BT40 and BT50 taper adapters for mounting screw-on shank milling tools on machining centres with BT spindle interfaces.
| Taper | Thread | Projection Lengths (mm) |
|---|---|---|
| BT40 | M8 | 50, 75, 100 |
| BT40 | M10 | 50, 75, 100 |
| BT40 | M12 | 50, 75, 100, 125 |
| BT40 | M16 | 50, 75, 100, 125, 150 |
| BT50 | M12 | 50, 100, 150 |
| BT50 | M16 | 50, 100, 150 |
Tool Holders for Indexable Milling Cutters

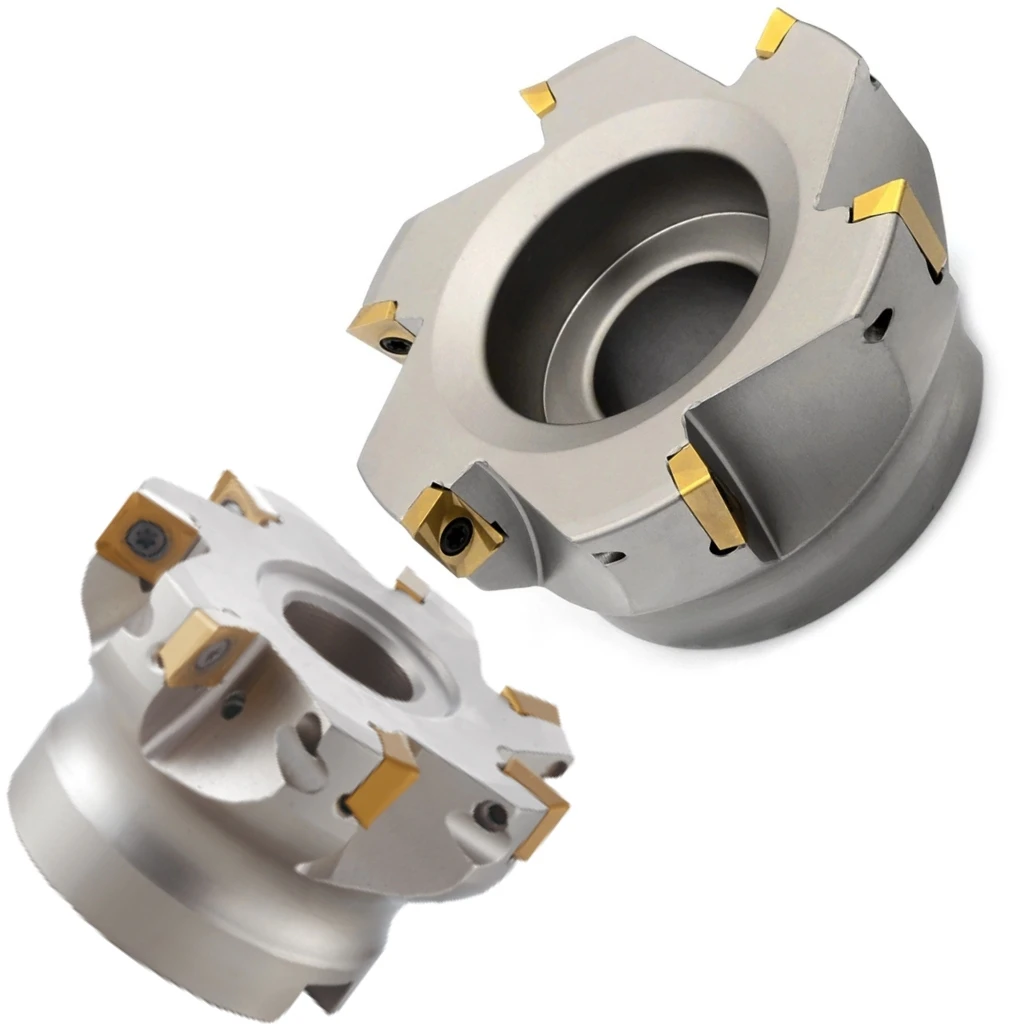

BAP 300R and 400R face mills use cylindrical C-shank holders that mount directly into collet chucks or hydraulic chucks on CNC machining centres. Available in C16 to C32 shank diameters to match each face mill model. Through-coolant capability ensures effective chip evacuation at the cutting zone.

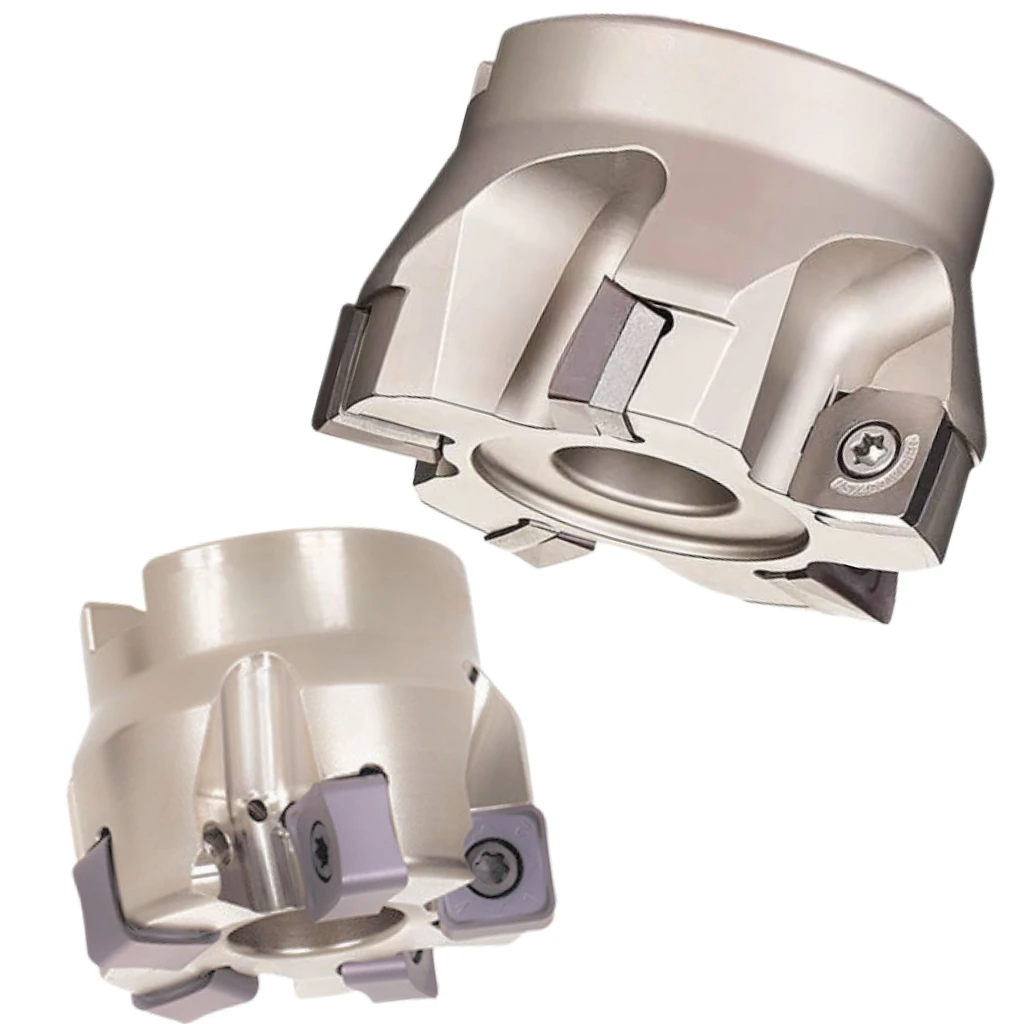

ASX400 shell-type shoulder mills use arbor mounting with standard bore diameters from 22mm to 38.1mm. The shell mill slides onto a mating arbor and is secured with a draw bolt through the spindle, providing rigid support for shoulder milling operations at full depth of cut.
Contact our sales team for application recommendations and pricing for specific tool holder and adapter configurations.
