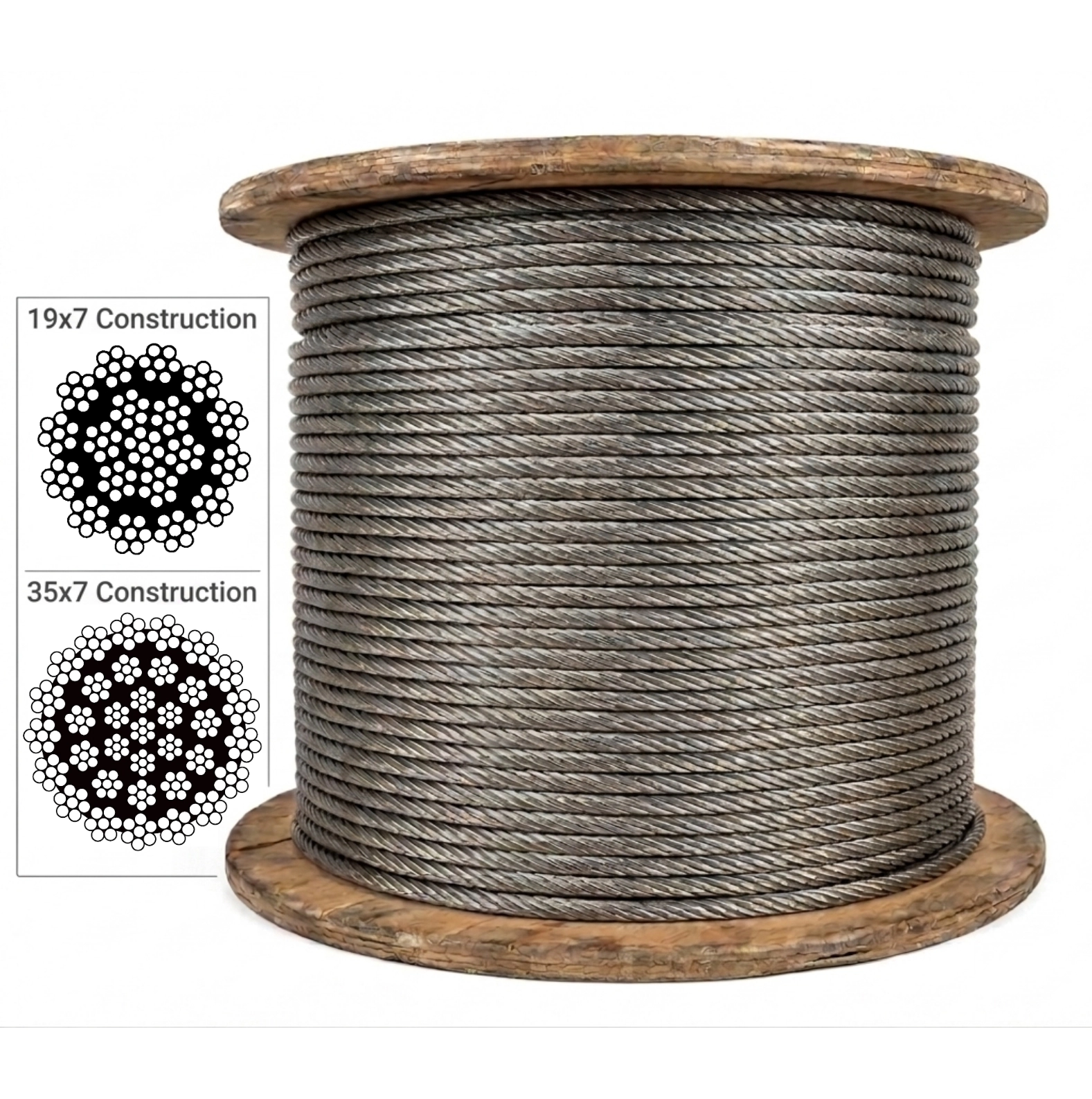

Galvanized Non-Rotating Wire Rope
Galvanized Non-Rotating Wire Rope is purpose-engineered for overhead cranes, elevator systems, lifts, and hoists where rotation resistance is critical for safe load control. The 19x7 and 35x7 non-rotating constructions minimise load sway and twisting, delivering stable lifting performance in vertical and inclined lifting applications. Suitable for crane hoisting, material lifts, passenger elevators, and heavy-duty industrial hoists.
Galvanized Non-Rotating Wire Rope Technical Specifications
| Specification | Details |
|---|---|
| Material | Galvanized Steel |
| Construction | 19x7 or 35x7 Non-rotating |
| Tensile Strength | 1770 - 1960 N/mm² |
| Diameter Range | 6mm to 52mm |
| Standard | BS EN 12385 |
| Core Type | IWRC (Independent Wire Rope Core) |
Galvanized Non-Rotating Wire Rope — Sizes & Constructions
| Sizes Available (mm) | Available Cable Constructions |
|---|---|
| 6 mm | 19x7 Non-rotating |
| 8 mm | 19x7 Non-rotating |
| 10 mm | 19x7 Non-rotating |
| 12 mm | 19x7 Non-rotating |
| 14 mm | 19x7 Non-rotating |
| 16 mm | 19x7 Non-rotating |
| 18 mm | 19x7 Non-rotating |
| 19 mm | 19x7 or 35x7 Non-rotating |
| 20 mm | 19x7 or 35x7 Non-rotating |
| 22 mm | 19x7 or 35x7 Non-rotating |
| 24 mm | 19x7 or 35x7 Non-rotating |
| 26 mm | 35x7 Non-rotating |
| 28 mm | 35x7 Non-rotating |
| 30 mm | 35x7 Non-rotating |
| 32 mm | 35x7 Non-rotating |
| 36 mm | 35x7 Non-rotating |
| 38 mm | 35x7 Non-rotating |
| 40 mm | 35x7 Non-rotating |
| 44 mm | 35x7 Non-rotating |
| 52 mm | 35x7 Non-rotating |
Galvanized Non-Rotating Wire Rope — Part of Our Wire Rope Range in Dubai
Galvanized Non-Rotating Wire Rope is a specialised product within our comprehensive wire rope range in Dubai. It is the preferred choice for professional lifting applications requiring absolute load control. Our stock features high-tensile galvanized steel wire ropes in 19x7 and 35x7 constructions, designed specifically to resist rotation and twisting during overhead lifting.
Manufactured to meet international standards, this rope offers a tensile strength ranging from 1770 to 1960 N/mm², ensuring durability even in the most demanding industrial environments. The galvanized coating provides excellent resistance against corrosion, making it an ideal choice for the harsh weather conditions prevalent in the Middle East.
As part of DAH Marine's broader wire rope portfolio — which includes galvanized fibre core, IWRC, stainless steel, and PVC coated options — this non-rotating variant delivers the specialised rotation resistance needed for crane and hoist applications. Whether you are involved in construction, shipping, or general material handling, it ensures minimal load sway, improved safety, and increased productivity on site.
Need compatible fittings and tools? Browse our comprehensive range of Wire Rope Accessories to complete your lifting kit, including ferrules, thimbles, and swaging tools.
