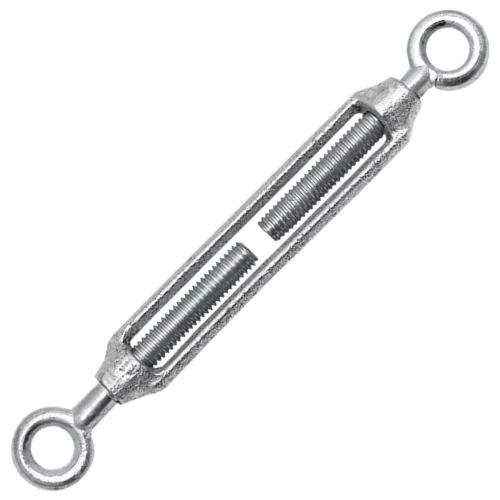

Commercial Eye & Eye Turnbuckles
- Material: Carbon Steel, Zinc-Plated for rust protection
- Configuration: Eye on both ends for maximum security
- Body Type: Open frame for quick adjustment and inspection
- Applications: Structural anchoring, guy wires, rooftop installations, and marine utility
The Commercial Eye & Eye Turnbuckles is a robust mechanical solution for demanding assembly and maintenance. Manufactured from premium Industrial Grade Carbon Steel, it provides a secure fit in high-stress assemblies. Our quality control processes ensure that every batch meets the high technical standards required by modern engineering. Available for immediate fulfillment to support your time-critical logistics from our central warehouse in Dubai. We prioritize prompt delivery across the GCC to ensure your projects remain on schedule. Our technical support team is available to assist with specific rigging and hardware queries.
Technical Specifications
| Thread Size (M) | Thread Size (inch) | Approx Length (Closed) | Approx Length (Open) |
|---|---|---|---|
| M5 | 3/16" | 120mm | 185mm |
| M6 | 1/4" | 150mm | 230mm |
| M8 | 5/16" | 190mm | 300mm |
| M10 | 3/8" | 245mm | 380mm |
| M12 | 1/2" | 320mm | 490mm |
| M16 | 5/8" | 410mm | 630mm |
| M20 | 3/4" | 460mm | 700mm |
